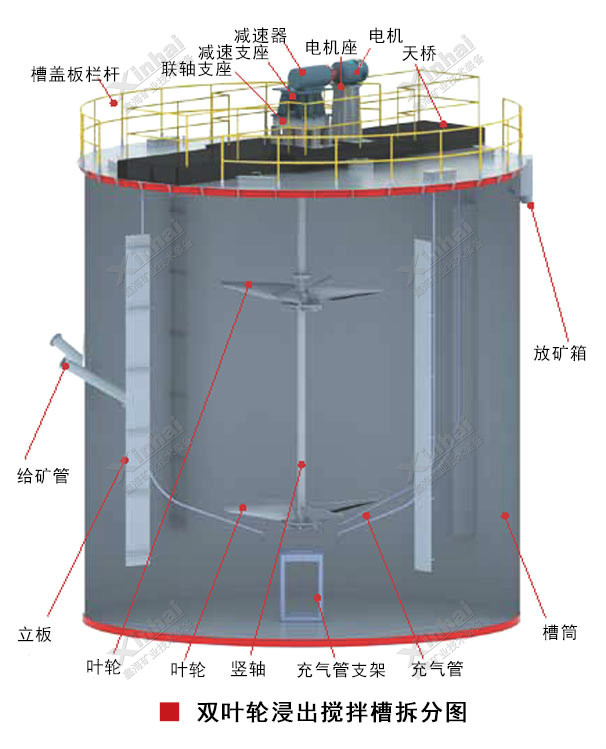

具有雙層葉輪，空氣經傳動中空軸進入槽內，經葉片攪動，空氣分散均勻；
葉輪包膠，轉速低，使用壽命長；
?采用多點給氣，充氣均勻；
礦流運動平穩，礦漿混合均勻，能耗少；
結構緊湊，維修方便；
槽中空軸通氣至底端，空氣經其進入槽內，分散均勻，氣泡小；
攪拌強度適中，槽內礦漿濃度、細度分布一致，可提高氰化的浸出率和炭的吸附率；
| 型號 | 槽體規格 (直徑X高度)(mm) | 有效容積 (m3) | 葉輪轉速 (r/min) | 葉輪直徑 (mm) |
電動機 型號 | 電動機功率 (kW) | 減速器型號 | 槽體重量 (kg) |
總重 (kg) |
|---|---|---|---|---|---|---|---|---|---|
| SJ2.0X2.5 | 2000X2500 | 7.07 | 52 | 909 | Y100L1-4 | 2.2 | XLD2.2-4-29 | 1609 | 2144 |
| SJ2.5X2.5 | 2500X2500 | 10.8 | 43 | 935 | Y112M-4 | 4 | XLD4-5-35 | 2159 | 2729 |
| SJ2.5X3.15 | 2500X3150 | 13.92 | 52 | 935 | Y100L1-4 | 2.2 | XLD2.2-4-29 | 2398 | 3095 |
| SJ3.0X3.0 | 3000 X3000 | 19 | 43 | 1130 | Y112M-4 | 4 | XLD4-5-35 | 3480 | 4583 |
| SJ3X3.15 | 3000X3150 | 20 | 3480 | 4160.6 | |||||
| SJ3X3.5 | 3000X3500 | 22.97 | 3211 | 4334.6 | |||||
| SJ3.15X3.55 | 3150X3550 | 25.73 | 1260 | 3433.5 | 4322.8 | ||||
| SJ3.5X3.5 | 3500X3500 | 31.3 | 52 | 1310 | Y132S-4 | 5.5 | XLD5.5-5-29 | 3480 | 5025 |
| SJ3.5X4 | 3500X4000 | 35.6 | 4230 | 5429 | |||||
| SJ3.55X4.0 | 3550X4000 | 36.8 | 43 | Y112M-4 | 4 | XLD4-5-35 | 4260 | 5025 | |
| SJ3.7X4.2 | 3700X4200 | 42 | 42 | XLD4-5-43 | 5266 | 6153 | |||
| SJ4.0X4.5 | 4000 X4500 | 52.78 | 35 | 1750 | Y132M-4 | 7.5 | XLD7.5-7-43 | 6397 | 7569 |
| SJ4.0X6 | 4000 X6000 | 71 | 33 | 1750 | Y160M-4 | 11 |
GRF137-Y11- 4P-44.65-M4 | 7681 | 9200 |
| SJ4.5X5.0 | 4500 X5000 | 74.75 | 35 | 1750 | Y132M-4 | 7.5 | XLD7.5-7-43 | 8614 | 10864 |
| SJ5.0X5.6 | 5000X5600 | 104.5 | 31 | 2046 | Y160M-4 | 11 | XLD11-8-47 | 8740 | 14291 |
| SJ5.5X6.0 | 5500 X6000 | 135.42 | 2100 | 12467 | 18745 | ||||
| SJ6.5X7.0 | 6500 X7000 | 215 | 21 | 2400 | Y180L-4 | 22 |
GRF147-Y22- 4P-70.87 | 17890 | 25978 |
| SJ7.0X7.5 | 7000 X7500 | 269 | 2400 | Y200L2-6 | 22 | XLD22-10-47 | 20505 | 29030 | |
| SJ7.5X8.0 | 7500 X8000 | 331 | 23 | 2900 | Y200L2-6 | 22 | BLD7-43-22L | 22552 | 32796 |
| SJ8.0X8.5 | 8000X8500 | 402 | 18.5 | 3200 | Y250M-8 | 30 | TPS315-3F | 30559.5 | 42467.3 |
| SJ8.5X9.0 | 8500X9000 | 480 | 18.5 | 3300 | Y250M-8 | 30 | TPS315-3F | 34130 | 46623 |
